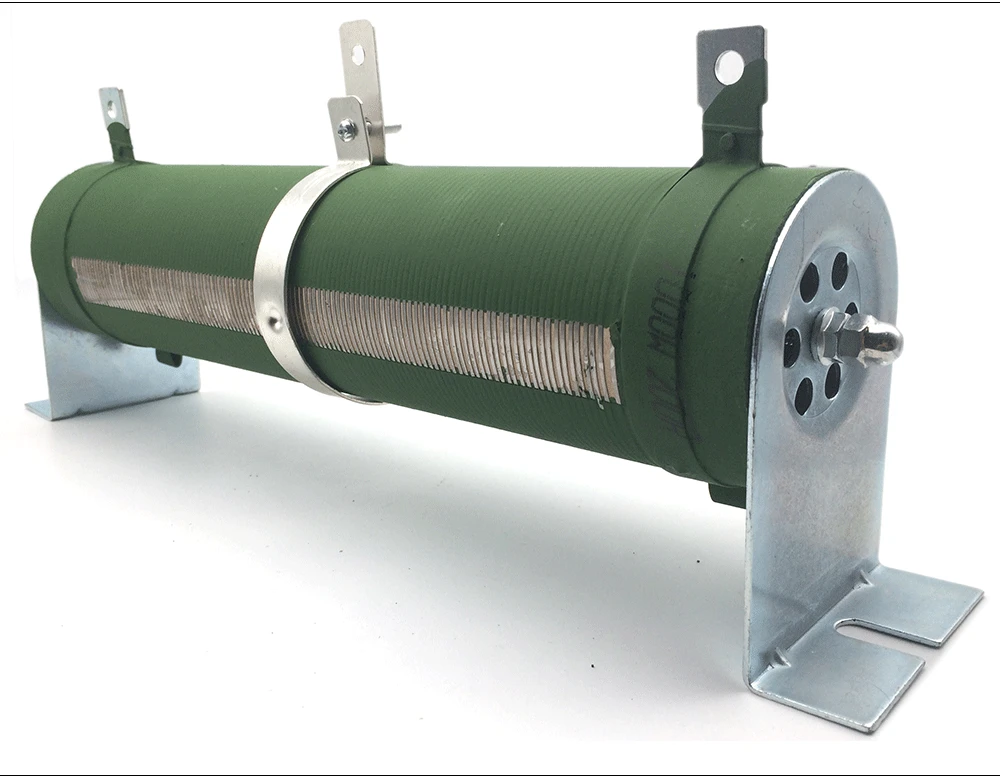

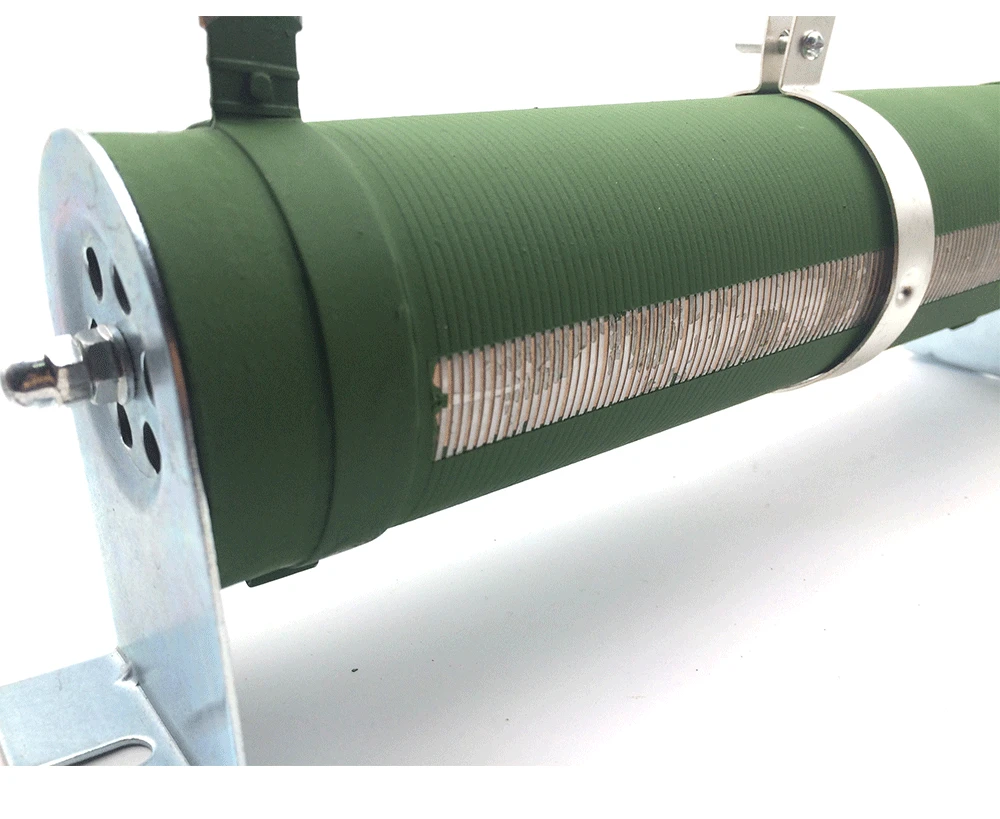

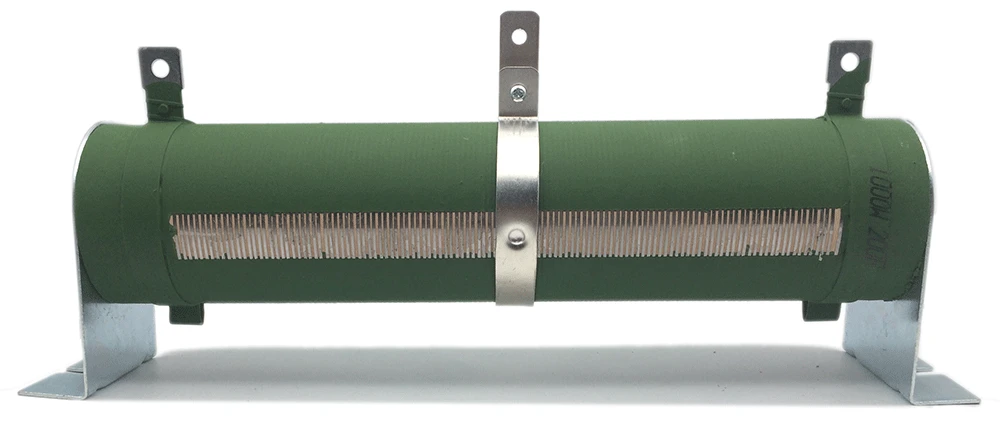

RXG20 Sliding rheostat

RXG20 serie resistor is variable resistor/potentiometer resistor/porcelain tube resistor/adjustable resistor/sliding rheostat

Feature:

This product is made of high-quality mullite as porcelain tube, stainless steel with interchangeable conductivity, inorganic coating, high-quality resistance wire and super-thick bracket. Mainly used for load testing, shunt voltage, voltage and current regulation, aging load.

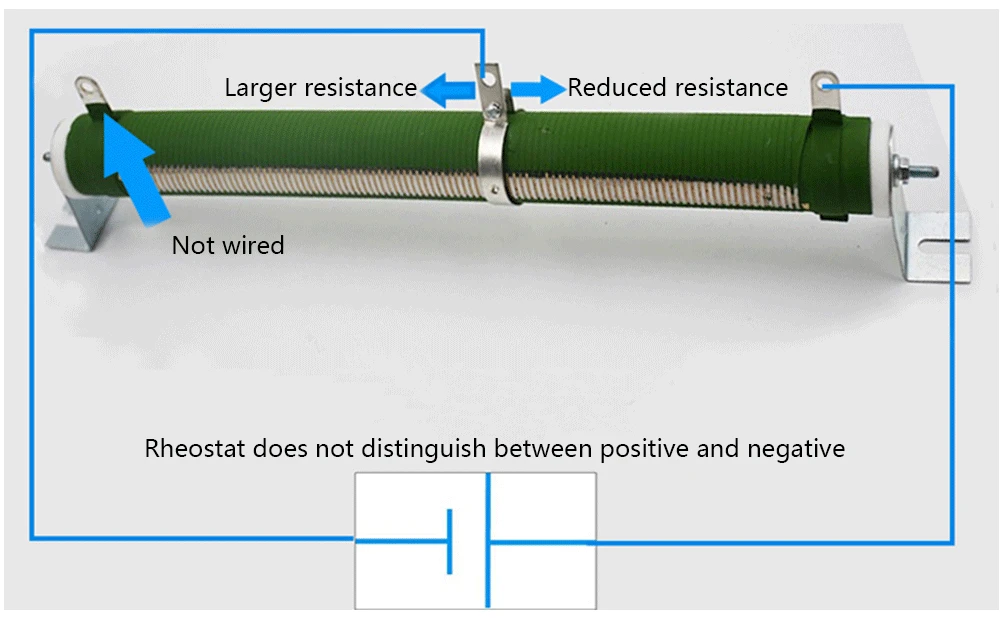

Instructions for use of adjustable resistor：

1. When the adjustable resistor adjusts its resistance, the power it can bear changes accordingly.
   For example: 1000W10 adjustable resistor, when you adjust the resistance to 5.
   At the middle value of ohm, the power that the resistor can bear at this time is correspondingly reduced to
   Half the power, that is, the resistance withstand power at this time is 500W W.
   2: If the resistor needs to be used for a long time (lasting more than 10 minutes)
   It is suggested to amplify the power by two or three times, and the resistor cannot work at full load for a long time.

————————————————————————————————————————————————————————-
